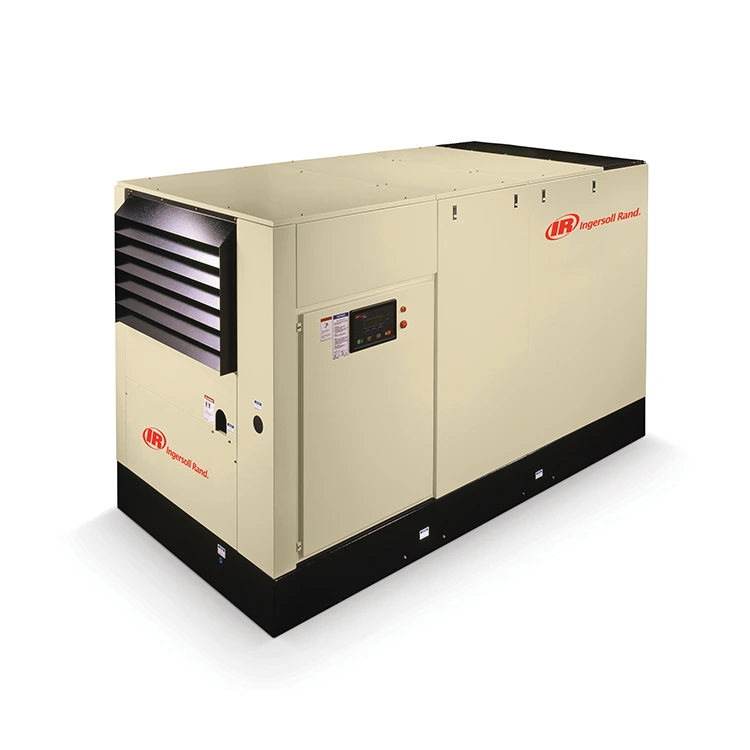

In industrial production, compressed air is often referred to as the "second energy source" after electricity, widely used in pneumatic tools, material conveying, instrumentation control, spraying, and many other applications. The equipment providing this core power—the screw air compressor—directly affects production efficiency and operating costs through its performance and reliability. The Ingersoll Rand RM series oil-flooded screw air compressors are designed as a systematic solution to meet these demands. Their core value is built upon three dimensions: high energy efficiency, reliable stability, and productivity optimization.
The value of the RM series begins with its technological foundation. Unlike reciprocating piston compressors, screw compressors achieve gas compression through the continuous volume change between a pair of intermeshing helical rotors (male and female rotors) within the housing, delivering continuous discharge, low pulsation, and smooth operation.
Building on this foundation, the RM series reinforces practicality through the following core technologies:
Next-Generation Airend (Compressor Element): This is the heart of the compressor. The RM series incorporates a newly designed airend that optimizes rotor profiles to improve efficiency while increasing displacement. Depending on the model, efficiency improvements can reach up to 16%, with displacement increases of 14% to 34%. This means users can achieve greater air output with lower power consumption, directly reducing both capital investment and operating costs.
Efficient Drive and Motor Systems:
Fixed-Speed Models: Equipped with IE3 premium efficiency motors compliant with IEC standards, featuring IP55 protection and Class F insulation.
Variable-Speed Models: Certain RM series models utilize IE5 oil-cooled permanent magnet motors with IP66 protection. This motor configuration is the key to energy efficiency, working in conjunction with high-capacity variable frequency drives to precisely adjust rotational speed based on actual air demand, eliminating the energy waste associated with unloading operation in fixed-speed compressors.
Reliable and Intelligent System Design:
V-shield™ Technology: Employs face-seal O-rings to provide repeatable, leak-free connections, fundamentally reducing common points of oil and air leakage.
Luminance Intelligent Controller: Monitors compressor operating parameters in real time, such as temperature and pressure, and provides early warnings through the alarm system to prevent production losses from unexpected shutdowns.
Selecting the appropriate RM compressor requires consideration from the following dimensions:
This is the most fundamental matching criterion. Taking the RM 7-11kW series as an example, the standard parameters are as follows:
| Model | Rated Power (kW) | Rated Pressure (barg) | Displacement (m³/min) |
|---|---|---|---|
| RM7 | 7.5 | 7.5 | 1.27 |
| RM7 | 7.5 | 10 | 1.02 |
| RM11 | 11 | 7.5 | 1.93 |
| RM11 | 11 | 12.5 | 1.32 |
Practical Suggestion: Beyond rated power, pay close attention to Specific Power—the power consumed to produce a unit of compressed air. The efficiency gains from the RM series' next-generation airend provide a significant advantage in this metric. For larger-scale requirements, the RM200-250 series can achieve 15%-20% electrical cost savings through optimized design.
This is a critical decision in the selection process.
Fixed Speed: The motor runs at a constant speed. Suitable for single-production scenarios with stable air demand and minimal fluctuation. The initial investment is lower, but energy is wasted during unloading operation.
Variable Speed Drive (VSD): Such as the RM series ECO-PM permanent magnet variable-speed models. These automatically adjust motor speed based on network pressure, achieving "produce only what is consumed." If your facility operates on multiple shifts or experiences significant air demand fluctuations, VSD models are the inevitable choice. While the initial investment is higher, the electricity cost savings typically recover the investment within a short period (industry data suggests energy consumption reductions of 35%-60% compared to fixed-speed units).
The RM series belongs to the oil-flooded screw compressor category, where lubricating oil is injected into the compression chamber for cooling, lubrication, and sealing purposes. The advantages are cost-effectiveness and the ability to achieve higher pressures (e.g., 14 barg) with single-stage compression, making them suitable for most general industrial applications.
However, you need to assess your own air quality requirements. According to the ISO 8573-1 air quality standard, general manufacturing typically requires Class 1 or 2 air. If your application involves food, pharmaceutical, electronics, or semiconductor industries with extremely high purity requirements, you may need to consider oil-free screw compressors, or add precision filtration and drying equipment downstream.
Even with correct selection, neglecting installation and maintenance can lead to performance degradation or even failure.
Installation and Site Requirements:
Reserve Maintenance Access: The RM series is designed with convenience in mind, featuring same-side piping connections and ample maintenance space. During installation, always comply with manual requirements to ensure adequate heat dissipation clearance and service access around the unit.
Ambient Temperature: The RM series (particularly the 200-250 models) is designed for higher ambient temperatures, capable of adapting to harsher operating conditions. However, in extremely hot or heavily dusty environments, enhanced ventilation or intake filtration should still be considered.
Preventive Maintenance:
Three Filters and Lubricant: The core of screw compressor maintenance lies in the periodic replacement of the oil separator, air filter, oil filter, and lubricating oil. The RM series' large-diameter separator tank and element design ensure more thorough oil-air separation, lower oil carryover, and extended service intervals. Additionally, the factory-filled synthetic coolant reduces consumable costs.
Condensate Management: The integrated water separator effectively reduces downstream after-treatment loads, extending equipment life.
| Symptom | Likely Cause | Corrective Action |
|---|---|---|
| High discharge temperature | Insufficient oil level; clogged oil cooler; faulty thermostat | Check oil level; clean cooler; replace thermostat |
| Excessive oil carryover | Worn separator element; drain valve stuck open | Replace separator element; inspect/repair drain valve |
| Low discharge pressure | Clogged air filter; system leaks; worn airend | Replace air filter; check piping for leaks; consult service provider |
| Frequent loading/unloading | Oversized compressor; leaking downstream | Assess sizing; repair system leaks |
| Motor overload trip | Power supply issue; mechanical binding | Check voltage; inspect drive coupling |
The practicality of the RM series oil-flooded screw compressors extends far beyond the equipment itself—it is a systematic solution integrating a high-efficiency airend, intelligent control, and human-centric design. It strikes a balanced position across energy efficiency, reliability, and maintenance convenience. The selection principle should always be "fit-for-purpose": choose power based on specific pressure and flow requirements; decide on variable-speed based on air demand fluctuation patterns; and determine post-treatment needs based on the end-use air quality requirements.
